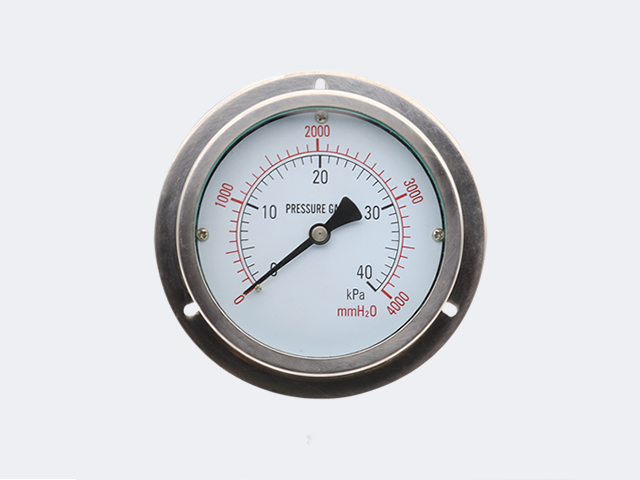

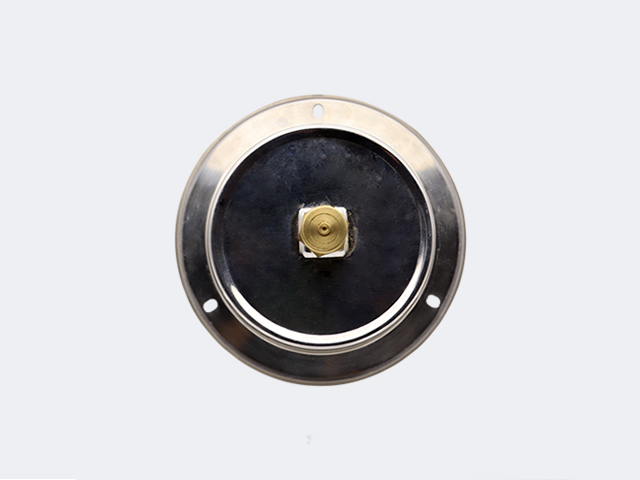

YE-100 ZT Capsule Pressure Gauge
YE-100 ZT Capsule Pressure Gauge
YE-100 ZT Capsule Pressure Gauge

Used in Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel. It can used for severe service conditions where pulsation or vibration exist. Premium quality and long life.

YE-100 ZT Capsule Pressure Gauge

Application

Used in Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel. It can used for severe service conditions where pulsation or vibration exist. Premium quality and long life.

Specifications

Outer diameter

65MM

Testing pressure range

-100Kpa~0 to 0~100Kpa

Accuracy

Level 1.5;Level 2.5

Sensitive element

316L

Case material

stainless steel 304

Operating environment

-25~55℃, relative humidity≤85%

Temperature effect

≤0.4%/10℃
